Appendix N - OCAS Automated Electronic Transcript Webservice - Setup
Introduction
The Ontario College Application Service (OCAS) - Student Transcript Webservices is used to generate and immediately send an electronic student transcript in an XML format using SOAP Services to OCAS upon their request.
This feature requires a minimum PowerSchool version of PS_20.11.x and a minimum State Reporting version of SR_22.2.2.0.
SOAP Action
If the client is sending a SOAP Action (not required), then SOAP Action must have the below value as part of the request in the HTTP Header
1SOAPAction=urn:getStudentTranscript
SOAP Request Parameters
The XML request must contain the following parameters:
TransmissionData Segment
Data Element | Description |
---|---|
TransmissionData | Section Node. |
DocumentID | The document version number The value is copied and sent back in the response |
CreatedDateTime | The date and time the report is requested Format is yyyy-MM-dd’T’HH:mm:ss.SSSZ |
TransmissionType | |
TransmissionData.Source | Outer Tag |
OrganizationId | Organization Id |
OrganizationName | The Board name |
TransmissionData.Destination | Outer Tag |
OrganizationId | Organization Id |
OrganizationName | The Board name |
TransmissionData | Outer Tag |
ApplicationNumber | Application Number |
DocumentProcessCode | The document process code. Production or Test The value is copied and sent as is in response. |
RequestTrackingID | Tracking Id. The value is copied and sent as is in response. |
RequestStatus |
Student Segment
Field | Required | Description |
---|---|---|
Student | Student Segment Outer tag | |
StateAssignedPersonId | C | The student OEN number. Mandatory if student names are not provided, otherwise, optional. |
SchoolAssignedPersonId | No | The ID assigned by the school for the student that needs to be selected (Student Number). |
ESIS | Yes | Number of the school the student is enrolled (Alternate School Number or School Number). |
School Name | Name of the school the student is enrolled | |
BirthDate (DOB) | Yes | Student Date of Birth. Format: yyyyddmm |
GenderCode | Yes | Student's gender. Valid values: M - Male F - Female N - Prefer not to disclose S - prefer to specify |
Name | Name outer tag | |
FirstName | C | Student's preferred first name. |
MiddleName | C | Student's preferred middle name. |
LastName | C | Student's preferred last name. |
LegalNameOfSchoolRecord | Legal name outer tag | |
FirstName | C | Student's legal first name, if available. |
MiddleName | C | Student's legal middle name, if available. |
LastName | C | Student's legal last name, if available. |
Either legal or preferred names are mandatory if OEN is not provided, otherwise, optional.

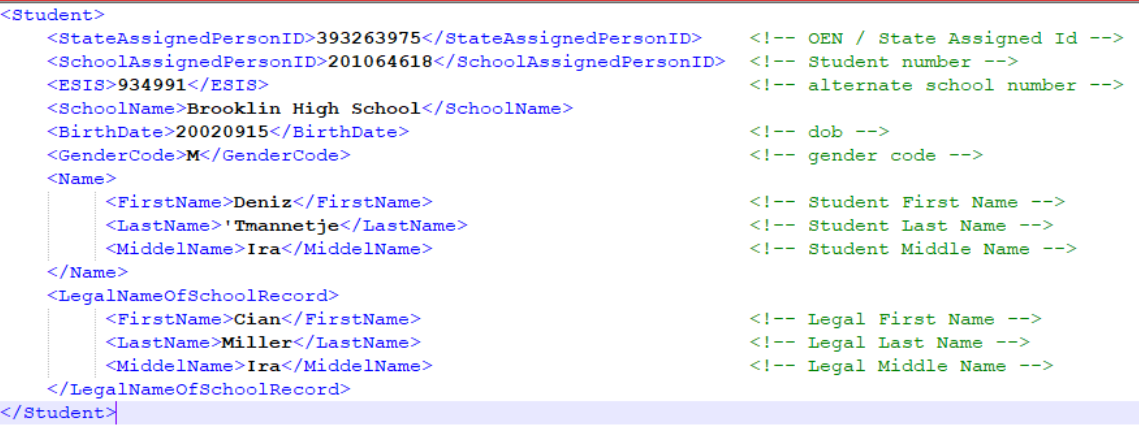

Sample Request Parameters.
![](../../__attachments/17271525/image2022-2-21_14-7-36.png?inst-v=d4313c52-850c-4934-9f20-92fa2e10e7c9)
Student Selection
The service returns a transcript for one student at a time. The student is selected as per the following criteria:
The student must be enrolled in the school provided in the request (ESIS). If the transferred student is not yet enrolled, then an error Student Not Found is displayed.
Student DOB and Gender must match the values provided in the request.
Match student on either OEN and/or Legal name, whichever provided.
If the legal name is not provided, then at least the student's regular name must be provided in the request.
Student's grade level must be 9 or higher
The report is generated even if the student has no marks to be printed and no community hours are posted
Student is excluded if:
Student is cross-enrolled
Attendance type is excluded for the enrolment (EnrollmentType field = EX in the Students or ReEnrollments record) associated with, in whole or in part, the run date (i.e., if there is any overlap between the enrolment start and end dates and the run date).
The service returns output for only one student, an error is displayed if more than one student is found to match the selection criteria.
Graduation, Courses, and StoredGrades Selection
Same rules are used to generate the Electronic Transcript Report manually.
Sample SOAP Request
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:tran="http://service/">
<soapenv:Header>
<wsse:Security xmlns:wsse="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd">
<wsse:UsernameToken>
<wsse:Username>NIKODENN8805</wsse:Username>
<wsse:Password Type="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-username-token-profile-1.0#PasswordText">NIKODENN8805</wsse:Password>
</wsse:UsernameToken>
</wsse:Security>
</soapenv:Header>
<soapenv:Body>
<tran:getStudentTranscript>
<tran:requestXml>
<HighSchoolTranscriptRequest><TransmissionData><DocumentID>0463eb86-1d9e-40ef-98a1-4b8266ee919a</DocumentID><CreatedDateTime>2017-01-31T16:11:56.178478-05:00</CreatedDateTime><TransmissionType>Reissue</TransmissionType><Source><OrganizationId>OCAS</OrganizationId><OrganizationName>OCAS Application Services Inc.</OrganizationName></Source><Destination><OrganizationId>66060</OrganizationId><OrganizationName>Durham DSB</OrganizationName></Destination><ApplicationNumber>170019396</ApplicationNumber><DocumentProcessCode>P</DocumentProcessCode><RequestTrackingID>H20161216012877</RequestTrackingID><RequestStatus></RequestStatus></TransmissionData><Student><StateAssignedPersonID>527032791</StateAssignedPersonID><RecipientAssignedID>170019396</RecipientAssignedID><SchoolAssignedPersonID>800234756</SchoolAssignedPersonID><ESIS>934991</ESIS><SchoolName>Brooklin High School</SchoolName><BirthDate>20020915</BirthDate><GenderCode>F</GenderCode><Name><FirstName>Roy</FirstName><LastName>Msackyi</LastName></Name><LegalNameOfSchoolRecord><FirstName>Mackenzie</FirstName><LastName>Vaillancourt</LastName></LegalNameOfSchoolRecord><Contacts><Address><AddressLine> 60 Corporate Crt </AddressLine><City>Guelph</City><StateProvinceCode>ON</StateProvinceCode><PostalCode>N1G5J3</PostalCode></Address><Phone><AreaCityCode>555</AreaCityCode><PhoneNumber>5555555</PhoneNumber><NoteMessage>Home Phone</NoteMessage></Phone><AlternatePhone></AlternatePhone><Email><EmailAddress>dpptest@mailinator.com</EmailAddress></Email></Contacts></Student><AcademicInfo><AcademicAward><Graduated>Y</Graduated><AcademicCompletionDate>12</AcademicCompletionDate></AcademicAward><AcademicSummary><ExitDate>201107</ExitDate></AcademicSummary></AcademicInfo></HighSchoolTranscriptRequest>
</tran:requestXml>
</tran:getStudentTranscript>
</soapenv:Body>
</soapenv:Envelope>
Sample SOAP Response from Server
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/"> <SOAP-ENV:Header/> <SOAP-ENV:Body> <ns2:getStudentTranscriptResponse xmlns:ns2="http://service/"> <ns2:return><![CDATA[<HighSchoolTranscript><TransmissionData><DocumentID>0463eb86-1d9e-40ef-98a1-4b8266ee919a</DocumentID><CreatedDateTime>2021-09-24</CreatedDateTime><Source><Organization><ESIS>66060</ESIS><OrganizationName>PS District One</OrganizationName><Contacts><Phone><AreaCityCode>905</AreaCityCode><PhoneNumber>6666029</PhoneNumber><NoteMessage>Client, Support</NoteMessage></Phone></Contacts></Organization></Source><DocumentProcessCode>P</DocumentProcessCode><RequestTrackingID>H20161216012877</RequestTrackingID></TransmissionData><Student><Person><SchoolAssignedPersonID>800234756</SchoolAssignedPersonID><AgencyAssignedID>527032791</AgencyAssignedID><RecipientAssignedID>000000000</RecipientAssignedID><Birth><BirthDate>2002-09-15</BirthDate></Birth><Name><FirstName>Mackenzie</FirstName><MiddleName>Elizabeth</MiddleName><LastName>Vaillancourt</LastName></Name><Gender><GenderCode>F</GenderCode></Gender></Person><AcademicRecord><AcademicSession><AcademicSessionDetail><SessionBeginDate>2016-09-06</SessionBeginDate><SessionEndDate>2020-06-30</SessionEndDate></AcademicSessionDetail><School><OrganizationName>Brooklin High School</OrganizationName><ESIS>934991</ESIS></School><AcademicAward><AcademicAwardLevel>4</AcademicAwardLevel><AcademicAwardTitle>Ontario Secondary School Diploma</AcademicAwardTitle><AcademicAwardProgram><AcademicProgramName></AcademicProgramName><ProgramSummary><GPA><CreditHoursEarned>31.00</CreditHoursEarned><TotalQualityPoints>18.00</TotalQualityPoints></GPA></ProgramSummary></AcademicAwardProgram></AcademicAward></AcademicSession><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>12</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>78</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>ENG4U</CourseNumber><CourseTitle>English </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2020-06-30</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory>0100</Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>12</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>72</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>MCV4U</CourseNumber><CourseTitle>Calculus and Vectors </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2020-06-30</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory></Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>12</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>82</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>SBI4U</CourseNumber><CourseTitle>Biology </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2020-06-30</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory></Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>12</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>87</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>HFA4U</CourseNumber><CourseTitle>Nutrition and Health </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2020-01-29</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory>0100</Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>12</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>88</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>PSK4U</CourseNumber><CourseTitle>Introduction to Kinesiology </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2020-01-29</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory></Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>12</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>80</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>SCH4U</CourseNumber><CourseTitle>Chemistry </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2020-01-29</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory></Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>12</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>80</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>MHF4U</CourseNumber><CourseTitle>Advanced Functions </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2020-01-29</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory></Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>11</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>88</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>PAI3O</CourseNumber><CourseTitle>Individual and Small Group Activities </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2019-06-30</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory>0100</Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>11</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>88</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>TCJ3C</CourseNumber><CourseTitle>Construction Technology </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2019-06-30</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory></Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>11</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>85</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>SCH3U</CourseNumber><CourseTitle>Chemistry </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2019-06-30</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory></Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>11</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>86</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>SBI3U</CourseNumber><CourseTitle>Biology </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2019-06-30</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory></Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>11</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>86</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>MCR3U</CourseNumber><CourseTitle>Functions </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2019-01-30</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory>0100</Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>11</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>78</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>ENG3U</CourseNumber><CourseTitle>English </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2019-01-30</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory>0100</Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>11</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>91</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>TGJ3M</CourseNumber><CourseTitle>Communications Technology </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2019-01-30</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory></Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>11</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>87</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>CHA3U</CourseNumber><CourseTitle>American History </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2019-01-30</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory></Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>10</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>83</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>SNC2D</CourseNumber><CourseTitle>Science </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2018-06-30</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory>0100</Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>10</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>85</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>ENG2D</CourseNumber><CourseTitle>English </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2018-06-30</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory>0100</Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>10</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>87</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>TCJ2O</CourseNumber><CourseTitle>Construction Technology </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2018-06-30</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory></Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>10</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>80</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>TGJ2O</CourseNumber><CourseTitle>Communications Technology </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2018-06-30</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory></Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>10</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>83</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>TTJ2O</CourseNumber><CourseTitle>Transportation Technology </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2018-01-31</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory></Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>10</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>73</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>MPM2D</CourseNumber><CourseTitle>Principles of Mathematics </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2018-01-31</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory>0100</Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>10</CourseCreditLevel><CourseCreditEarned>0050</CourseCreditEarned><CourseAcademicGrade>81</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>CHV2O</CourseNumber><CourseTitle>Civics and Citizenship </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2018-01-31</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory>0050</Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>10</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>80</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>CHC2D</CourseNumber><CourseTitle>Canadian History Since World War I </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2018-01-31</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory>0100</Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>10</CourseCreditLevel><CourseCreditEarned>0050</CourseCreditEarned><CourseAcademicGrade>96</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>GLC2O</CourseNumber><CourseTitle>Career Studies </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2017-11-07</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory>0050</Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>9</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>82</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>SNC1D</CourseNumber><CourseTitle>Science </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2017-06-30</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory>0100</Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>9</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>78</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>CGC1D</CourseNumber><CourseTitle>Issues in Canadian Geography </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2017-06-30</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory>0100</Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>9</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>92</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>TIJ1O</CourseNumber><CourseTitle>Exploring Technologies </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2017-06-30</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory>0100</Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>9</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>78</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>ADA1O</CourseNumber><CourseTitle>Dramatic Arts </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2017-06-30</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory>0100</Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>9</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>78</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>MPM1D</CourseNumber><CourseTitle>Principles of Mathematics </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2017-02-01</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory>0100</Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>9</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>86</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>PPL1O</CourseNumber><CourseTitle>Healthy Active Living Education </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2017-02-01</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory>0100</Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>9</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>74</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>ENG1D</CourseNumber><CourseTitle>English </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2017-02-01</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>ENG</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory>0100</Compulsory><CourseNote1></CourseNote1><CourseNote2></CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><Course><CourseCreditUnits>F</CourseCreditUnits><CourseCreditLevel>9</CourseCreditLevel><CourseCreditEarned>0100</CourseCreditEarned><CourseAcademicGrade>78</CourseAcademicGrade><CourseAcademicGradeStatusCode></CourseAcademicGradeStatusCode><CourseNumber>FSF1D</CourseNumber><CourseTitle>Core French </CourseTitle><CourseOverrideSchool><ESIS></ESIS></CourseOverrideSchool><CourseEndDate>2017-02-01</CourseEndDate><CourseInstructionSite>D</CourseInstructionSite><LanguageOfInstruction><LanguageCode>FRE</LanguageCode></LanguageOfInstruction><UserDefinedExtension><CourseType>R</CourseType><Compulsory>0100</Compulsory><CourseNote1></CourseNote1><CourseNote2>F</CourseNote2><CourseNote3></CourseNote3><CourseNote4></CourseNote4><CourseNote5></CourseNote5><CourseNote6></CourseNote6><CourseNote7></CourseNote7><CourseNote8></CourseNote8><CourseNote9></CourseNote9><CourseNote10></CourseNote10></UserDefinedExtension></Course><UserDefinedExtension><CommunityInvolvement>1</CommunityInvolvement><LiteracyTest>E</LiteracyTest><MIN>000000000</MIN></UserDefinedExtension></AcademicRecord></Student></HighSchoolTranscript>]]></ns2:return> </ns2:getStudentTranscriptResponse> </SOAP-ENV:Body> </SOAP-ENV:Envelope>
Sample SOAP Error Response
<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"> <soap:Body> <soap:Fault> <faultcode xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/">SOAP-ENV:Client</faultcode> <faultstring>Student Not Found</faultstring> <detail> <ns1:Exception xmlns:ns1="http://service/"/> </detail> </soap:Fault> </soap:Body> </soap:Envelope>
Potential Error Messages returned by the SOAP Service
Error Message | Reason |
---|---|
The XML provided was not valid, Please verify and send again | This message is displayed, if the <HighSchoolTranscriptRequest> xml string is not valid in requestXml |
Missing required parameters. Please verify and send again | If the required parameters are not provided. |
Student Not Found | If no student is found for the search criteria. |
More than one record found | If more than one student record was found for the search criteria. |
This report is only applicable for secondary students | If the student is below 8th grade/not a secondary student. |
Please report this problem to your Help Desk or administrative staff. It has also been logged for an administrator to review. | If the server could not handle a given request then, this error is displayed by the web service response. |
Setup a User to Access OCAS Webservice
Setup a user to access OCAS webservice
Log on to the Admin site as a District Administrator.
In the control bar, under Setup, click System.
On the System Administrator page, under Security, click Roles Administration.
On the Roles Administration page, click User Access.
To create an exclusive ETMS Capability Role for user
Click the New button.
Provide a reasonable Name, Description.
Verify if Enabled is selected.

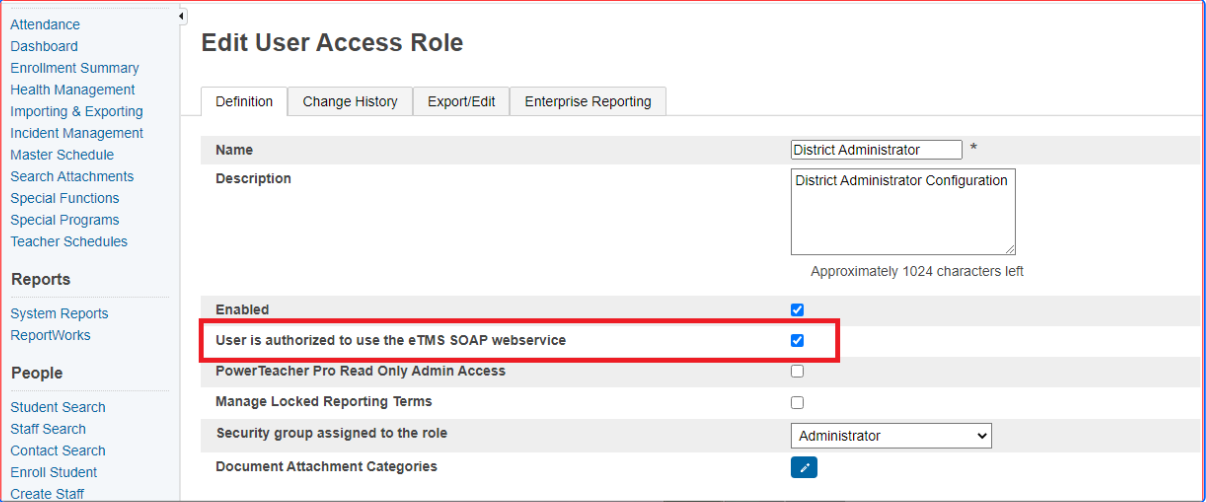

Verify if 'User is authorized to use the eTMS SOAP webservice' is selected. For reference, see image below.
Click Submit to save the Role.
To assign ETMS Capability to an existing Role.
Click any role in the User Access Roles page (role ‘District Administrator’ selected here is an example. Any existing role can be selected).
Verify if Enabled is selected.
Verify if 'User is authorized to use the eTMS SOAP webservice' is selected. For reference, see image below.
Click Submit to save the Role.
![](../../__attachments/17271525/image2022-2-21_14-16-8.png?inst-v=d4313c52-850c-4934-9f20-92fa2e10e7c9)
Navigate to the Start Page.
Search and select the user for which the capabilities must be assigned.

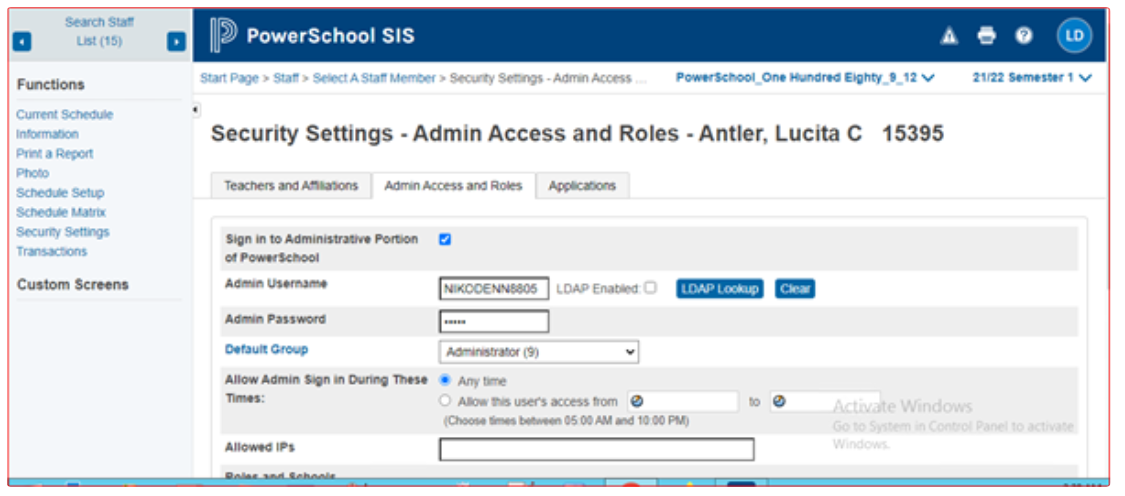

From the control bar, navigate to Security Settings.
Click Admin Access and Roles.
![](../../__attachments/17271525/image2022-2-21_14-21-33.png?inst-v=d4313c52-850c-4934-9f20-92fa2e10e7c9)
Provide a new or Reset the userid / password for the user by updating the Admin Username and Admin Password. Provide other details as required for the user. Keep note of the user details.
Click Add or Edit to edit an existing school.

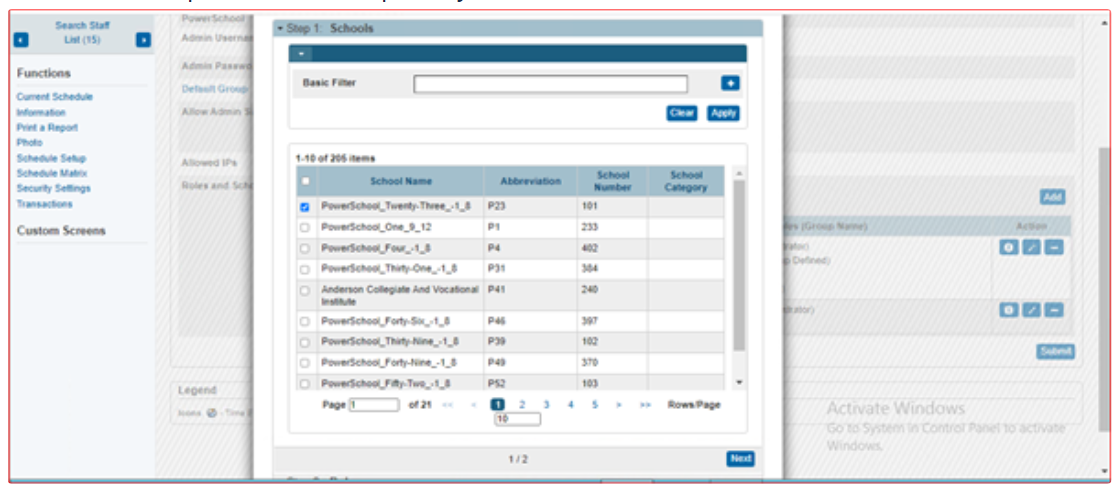

Select a school to provision the capability.
![](../../__attachments/17271525/image2022-2-21_14-21-3.png?inst-v=d4313c52-850c-4934-9f20-92fa2e10e7c9)
4. Click Next.

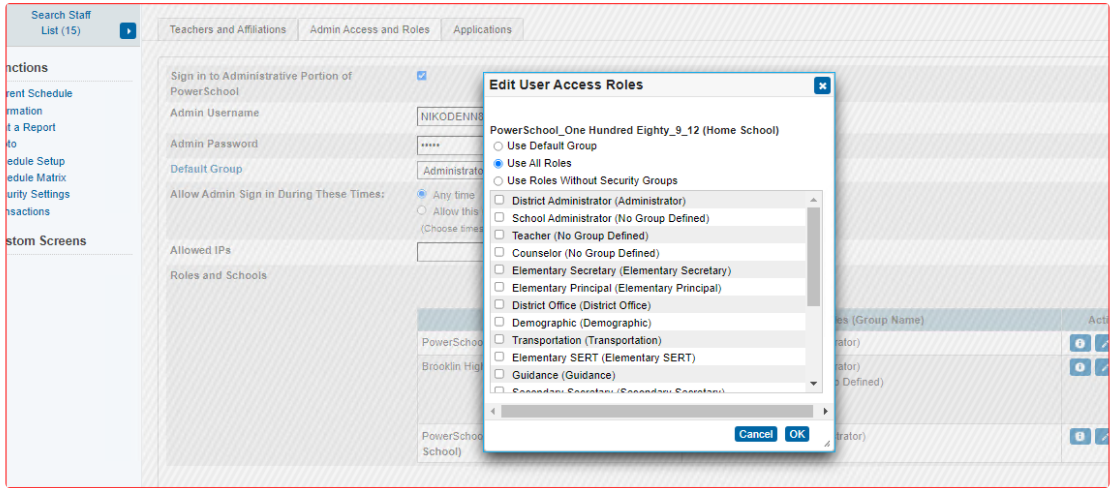

5. Choose All Roles.
![](../../__attachments/17271525/image2022-2-21_14-19-6.png?inst-v=d4313c52-850c-4934-9f20-92fa2e10e7c9)
6. Select the Role that has the capability assigned and click OK.
7. Submit the page to save the changes.
8. The following information should be sent to OCAS to let them know that the eTMS webservice is enabled for the district:
End Point Url : https://<server>/ws/ocas
User Id: User id of the user setup above
Password: Password of the user setup above
